CSS V-Wrap™ C100HM High-Modulus Code-Listed Unidirectional Carbon Fabric

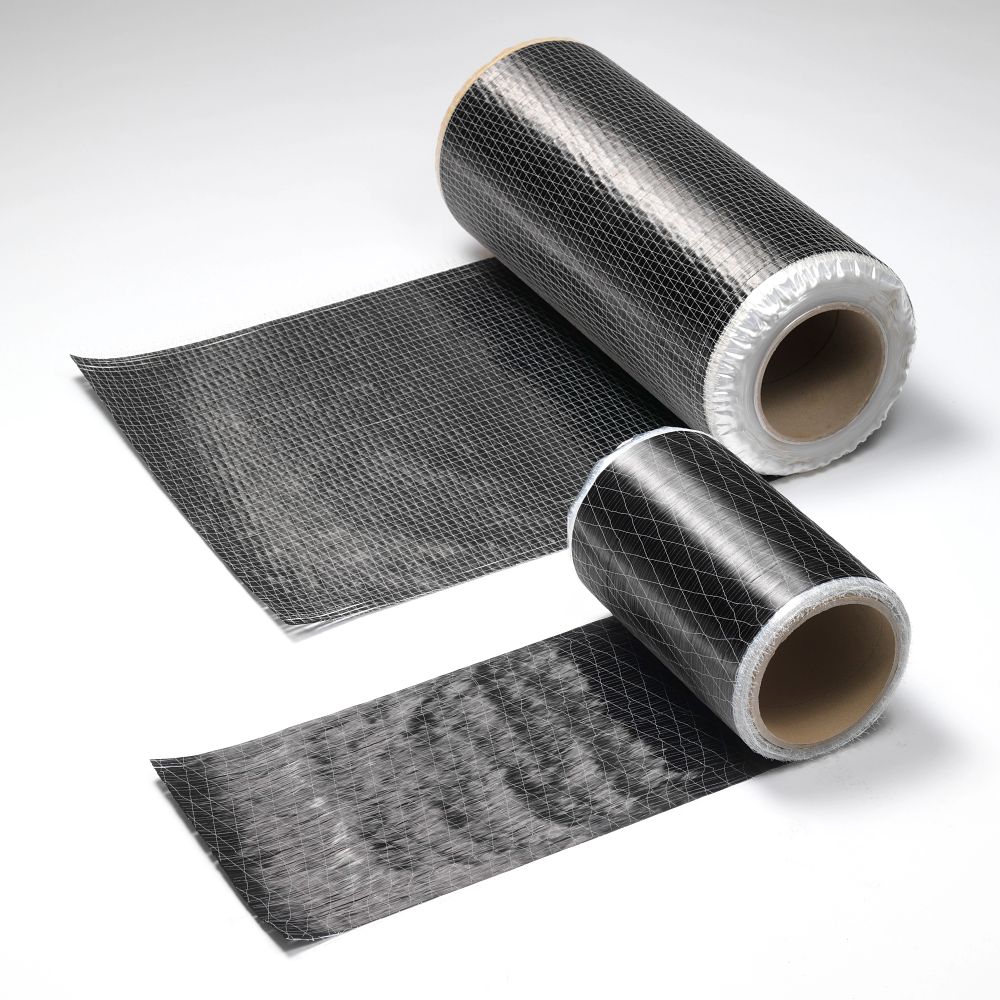

CSS V-Wrap C100HM is a high-modulus unidirectional carbon fiber fabric with fibers oriented in the 0° direction. The CSS V-Wrap C100HM system is field laminated using a two-part 100% solids and high-strength CSS V-Wrap-approved structural adhesives to form a carbon fiber reinforced polymer (CFRP) system used to reinforce and strengthen structural elements.

Key Features

  • ICC-ES ESR-4930 listed product
  • UL Listed
  • NSF/ANSI Standard 61 listed product for drinking water systems
  • 0% VOC
Contact Us

Product Details

Key Features

  • ICC-ES ESR-4930 listed product
  • UL Listed
  • NSF/ANSI Standard 61 listed product for drinking water systems
  • 0% VOC
  • 100% solvent-free
  • Non-corrosive reinforcement system
  • Lightweight flexible fabric can be wrapped around complex shapes
  • Used for shear, confinement or flexural strengthening
  • High strength and high modulus
  • Reduces crack width
  • Low aesthetic impact
  • Weight: 9.7 oz./yd.² (330 g/m²)

Applications

CSS V-Wrap fabrics can be used to resolve strength deficiencies and increase the load-carrying capacity of buildings, bridges, silos, chimneys and other structures.

  • Load increases
  • Seismic strengthening
  • Repair structural elements
  • Change in structural system
  • Design or construction defect

Color

  • Black

Storage Conditions

  • Store dry at 40°F – 90°F (4°C – 32°C)

Shelf Life

  • 10 years

Literature

Technical Data Sheet

Safety Data Sheet

Strengthening Brochure

CRB Article

Product Information Table

Model No.DescriptionPackaging Qty.
CV-C100HM24-5024 in. x 150 ft. / 50 yd. (610 mm x 45.7 m)1

Code Reports & Compliance

Product SeriesCompliance/CertificationReport/Approval
CSS V-Wrap™ C100HMInternational Building Code
International Residential Code
City of Los Angeles Building Code
City of Los Angeles Residential Code		ESR-4930
International Building Code
International Residential Code		ER-836
Hazard Communication StandardSafety Data Sheet for CSS V-Wrap™ CHM Unidirectional Fabrics
