GalvaJacket™ Cathodic Protection System

GalvaJacket™ Cathodic Protection System

The GalvaJacketTM Cathodic Protection System uses a proprietary zinc mesh anode placed directly against the inside face of a stay-in-place fiberglass form, and is proven to stop corrosion by providing an electrical current to the affected region. This current is produced through a galvanic process and thus, does not require a remote power supply.

The custom fabricated fiberglass jackets are designed and manufactured to fit a wide range of infrastructure shapes and sizes for rapid installation. Along with providing the attachments and components of a cathodic protection system, GalvaJacketTM also creates a stay-in-place form that is used for a form-and-pump repair of the concrete structure that is being repaired and protected.

How Can We Assist You?
Customized for Every Application
Lifejacektsystemcomponents

The GalvaJacket™ System may be tailored for nearly any type of structural component. We have successfully adapted the GalvaJacket™ System for a wide variety of industrial, energy, transportation, and commercial applications.

Repairs, Strengthens & Protects

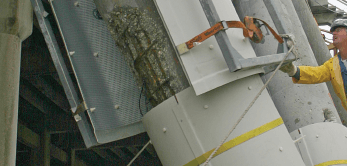

Lifejacektsystemrepairs

In addition to providing corrosion protection, the stay-in-place GalvaJacket™ serves as a form for placement of cementitious repair materials for cross-section loss, adding or restoring capacity to a structure.

Delivers Optimal Protection
Lifejacektsystemmesh

GalvaJacket™ is a maintenance-free system – its current output self-adjusts to meet changes in temperature, humidity, concrete resistivity, and a number of other factors, delivering optimum corrosion protection to the structure at all times.

GalvaJacketTM Technical Data

lifejacket technical drawing
Zinc Anode
Electrical Conductivity 27% IACS
Zinc Mesh Weight 7.8 Kg/m² (1.6 lb/ft²)
System Weight 17.1 Kg/m² (3.5 lb/ft²)
Average Open Area of Zinc 53%
Current Capacity 738 A•hr/Kg (335 A•hr/lb)
Glass Reinforced Polymer (GRP) Casing
Water Absorption (ASTM D570) 1% max.
Ultimate Tensile Strength (ASTM D638) 103 MPa min. (15,000 psi min.)
Flexural Strength (ASTM D796) 172 MPa min. (25,000 psi min.)
Flexural Modulus of Elasticity (ASTM D790) 4.8 GPa min. (700 ksi min.)
IZOD Impact (ASTM D4812) 15 ft-lb/inch min.(unnotched)
Barcol Hardness (ASTM D2583) 45 min.

Corrosion Control Engineering Support

Comprehensive Support

Our solution-building teams have the experience to assist in developing a range of alternatives, and provide a range of services including investigation support, solution development, cost and constructability consulting, and design assistance to help project teams select the best potential solution.

Corrosion Control Team Leader

Read more about our products and applications on our corrosion control solution builder page

Design-Assist & Engineered Product Support

• Investigation Support
• Solution Development
• Budget Development
• Specification Assistance
• Constructability Consulting
• Application Engineering
• Quality Control Programs
• Project-Specific Design-Assist
