V-Wrap™ FRP Composite Systems

V-Wrap™ – Protection From Standoff Threats

A Fiber Reinforced Polymer (FRP) Reinforcing System, V-Wrap™ combines lightweight, high-strength fibers (glass or carbon) with premium resins to create an externally bonded reinforcing system that is ideal for application to existing structural elements.

Versatility and Ease of Installation

V-Wrap™ is extremely flexible in its application and can be used on nearly any type of structural member in order to harden and increase structural capacity and protect against uplift, progressive collapse, and spalling. Because of its ability to harden a structural member without significantly increasing its size, V-Wrap™ can be used in confined space applications and on irregular member geometries. V-Wrap™ can also be used in conjunction with other systems such as DUCON®, Tstrata™ Steel Plate, and Tstrata™ Member Enlargement  to optimize a solution and increase cost efficiency.

Major Advantages of V-Wrap™ Include:
  • Increased flexural capacity of column, beam, and slabs in nearly any orientation
  • Ability to maintain column integrity through improved confinement
  • Spall protection for standoff blast applications
  • Ability to harden a structural member without significantly increasing its size
  • Speed of installation
  • Easy integration with other systems
Major Advantages of V-Wrap™ Include:

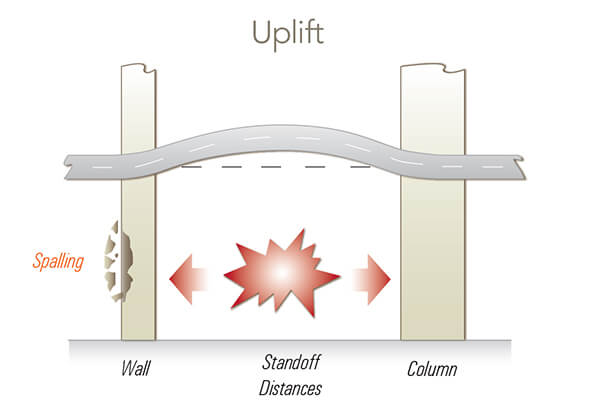

V-Wrap™ provides force protection at standoff distances for:

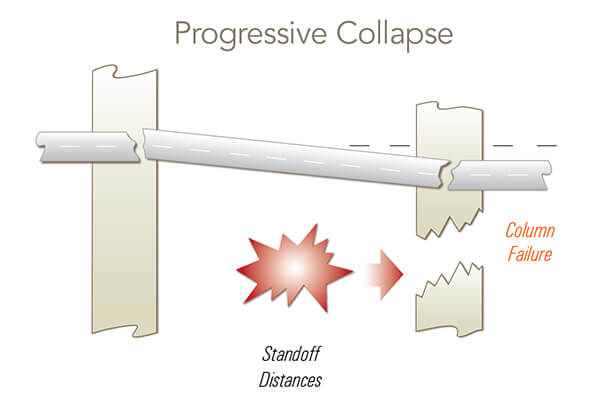

  • Progressive collapse caused by column failure and/or slab uplift
  • Spalling

V-Wrap™ FRP Composite Product Information

V-Wrap™ Systems are engineered to meet a project’s specific requirements. System components are selected to optimize application performance, and may include any combination of fabrics, laminates, resins, and coatings:

FRP Reinforcement: Fabrics

Product NameProduct DescriptionTechnical Data SheetSafety Data Sheet
V-Wrap™ C400HM38 oz per square yard (1,300 g/m2) unidirectional high-modulus carbon fiber fabricTechnical Data SheetSafety Data Sheet
V-Wrap™ C400H38 oz per square yard (1,300 g/m2) unidirectional carbon fiber fabricTechnical Data SheetSafety Data Sheet
V-Wrap™ C220B19 oz per square yard (645 g/m2) 0°/90° bi-directional high-modulus carbon fiber fabricTechnical Data SheetSafety Data Sheet
V-Wrap™ C200H18 oz per square yard (600 g/m2) unidirectional carbon fiber fabricTechnical Data SheetSafety Data Sheet
V-Wrap™ C200HM18 oz per square yard (600 g/m2) unidirectional high-modulus carbon fiber fabricTechnical Data SheetSafety Data Sheet
V-Wrap™ C1009 oz per square yard (300 g/m2) unidirectional carbon fiber fabricTechnical Data SheetSafety Data Sheet
V-Wrap™ EG5027 oz per square yard (915 g/m2) unidirectional glass fiber fabricTechnical Data SheetSafety Data Sheet
V-Wrap™ EG50B24 oz per square yard (835 g/m2) ±45° bi-directional glass fiber fabricTechnical Data SheetSafety Data Sheet
V-Wrap™ HM Carbon Fiber AnchorUnidirectional high modulus carbon fiber to anchor carbon and glass fabricTechnical Data SheetSafety Data Sheet
V-Wrap™ Carbon Fiber AnchorUnidirectional carbon fiber to anchor carbon and glass fabricTechnical Data SheetSafety Data Sheet
V-Wrap™ Glass Fiber AnchorUnidirectional fiber glass to anchor carbon and glass fabricTechnical Data SheetSafety Data Sheet

FRP Reinforcement: Pre-Cured Laminates

Product NameProduct DescriptionTechnical Data SheetSafety Data Sheet
V-Wrap™ Carbon Fiber RodPremanufactured composite carbon/resin rodsTechnical Data SheetSafety Data Sheet
V-Wrap™ Glass Fiber RodPremanufactured composite glass/resin rodsTechnical Data SheetSafety Data Sheet
V-Wrap™ Carbon Fiber PlatePremanufactured composite carbon/resin platesTechnical Data SheetSafety Data Sheet

FRP Resins

Product NameProduct DescriptionTechnical Data SheetSafety Data Sheet
V-Wrap™ 770Adhesive for FRP FabricsTechnical Data SheetSafety Data Sheet
V-Wrap™ 700SAdhesive for FRP Pre-Cured Laminates (Rods, Plates & Anchors)Technical Data SheetSafety Data Sheet
V-Wrap™ PFEpoxy Putty FillerTechnical Data SheetSafety Data Sheet

Fire Protection Coatings

Product NameProduct DescriptionTechnical Data SheetSafety Data Sheet
V-Wrap™ FPSSingle component, spray applied, specialized fire proofing materialTechnical Data SheetSafety Data Sheet

Force Protection Design & Engineering Support

Solutions For:

• Blast Protection
• Progressive Collapse Prevention
• Ballistics Protection
• Forced Entry Protection
• Impact Protection
• Fragmentation Protection
• Fire Protection

Force Protection Team Leader

Read more about our products and applications on our structural strengthening solution builder page

Design-Assist & Engineered Product Support

• Investigation Support
• Solution Development
• Budget Development
• Specification Assistance
• Constructability Consulting
• Application Engineering
• Quality Control Programs
• Project-Specific Design-Assist
